Counter Drone antennas work for fixed-site and vehicle type applications. There are omnidirectional and directional  antennas working between 400 MHz and 6000 MHz frequency range. Power levels of these antennas change depending on the antenna type. Counter drone antennas are called in many different words such as; Anti Drone Antennas, Anti UAV Antennas, Counter UAV Antennas, C UAV Antennas, Anti UAS Antennas, Counter UAS Antennas, C UAS Antennas. You can find a summary of the product in this link and an application note on the selection of Counter UAV Antennas in this link.

                               Counter Drone Antennas also cover GNSS Jamming Antennas (GPS jammer antennas).



Extended Frequency High Power Omnidirectional Wideband Jammer Antenna (Vehicle and Fixed-Site)

VWBO-4008000

400-8000 MHz High Power Omnidirectional Wideband Counter-Drone Antenna (Extended Frequency Range)

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		400-8000 MHz
2.5
200 Watt CW (Tested)
20 cm
0.5 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
High Power Omnidirectional Wideband Jammer Antenna (Vehicle and Fixed-Site)

VWBO-4006000

400-6000 MHz High Power Omnidirectional Wideband Counter-Drone Antenna (0.5 kg Lightweight)

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		400-6000 MHz
2.5
200 Watt CW (Tested)
20 cm
0.5 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
400-6000 MHz High Power Wideband Log Periodic Antenna (LPDA)

HPLPDA-4006000

 400-6000 MHz High Power Wideband Log Periodic Antenna (LPDA)

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Dimensions:
Nominal input impedance:
Connector:
Polarization:
Radiation Pattern:
Antenna Gain:		400-6000 MHz
2
200 Watt CW (%100 duty cycle) Tested
530 mm (Length) X 370 mm (Width)
50 ohm
N Female Connector
Linear
Directional
Typical 7 dBi (See antenna gain graph in the datasheet

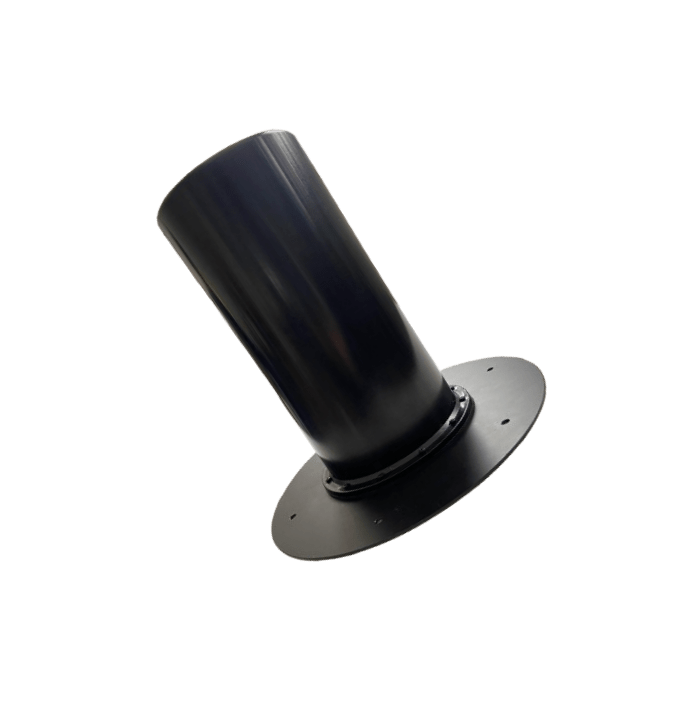

1150-1700 MHz Right Hand Circular Polarized High Power Axial Mode Helical Antenna

HP-AMHA-11501700

1150-1700 MHz Right Hand Circular Polarized (RHCP) Counter GNSS /GPS Antenna

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Height:
Nominal input impedance:
Connector:
Color:
Polarization:
Radiation Pattern:
Antenna Gain:
1150-1700 MHz
2 (Below 1.5 in most frequency band)
200 Watt CW (%100 duty cycle) Tested
770 mm
50 ohm
N Female Connector
Dark Green (Other colours on request)
Right Hand Circular Polarization (RHCP)
Directional
9.4 dBi to 13.3 dBi depending on the frequency
1100-1350 MHz Right Hand Circular Polarized High Power Axial Model Helical Antenna

HP-AMHA-11001350

1100-1350 MHz Right Hand Circular Polarized High Power Axial Mode Helical Antenna

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Height:
Nominal input impedance:
Connector:
Color:
Polarization:
Radiation Pattern:
Antenna Gain:		1100-1350 MHz
1.5
200 Watt CW (%100 duty cycle) Tested
770 mm
50 ohm
N Female Connector
Dark Green (Other colours on request)
Right Hand Circular Polarization (RHCP)
Directional
11.9 dBi to 13.6 dBi depending on the frequency
