Wideband Vehicle Antenna Family of Antenom Antenna Technologies cover different antenna types operating between 4 - 6000 MHz

                                        frequency range. Vehicle antennas are tested with the standard "MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle

                                        Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII". Vehicle antennas are designed for Counter Drone,

                                        Counter RCIED, Wideband Spectrum Monitoring, Tactical Communication and Electronic Countermeasure (ECM) applications.

                                        Vehicle Antennas are listed below:

High Power Omnidirectional Vehicle Antenna

5-520 MHz High Power Omnidirectional Vehicle Antenna

(1 meter)

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		5-520 MHz
3.5
100 Watt CW (Tested)
1 meters
3.0 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
High Power Omnidirectional Vehicle Antenna

4-200 MHz High Power Omnidirectional Vehicle Antenna

(1 meter)

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		4-220 MHz
3.0
160 Watt CW (Tested)
1 meters
3.9 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII

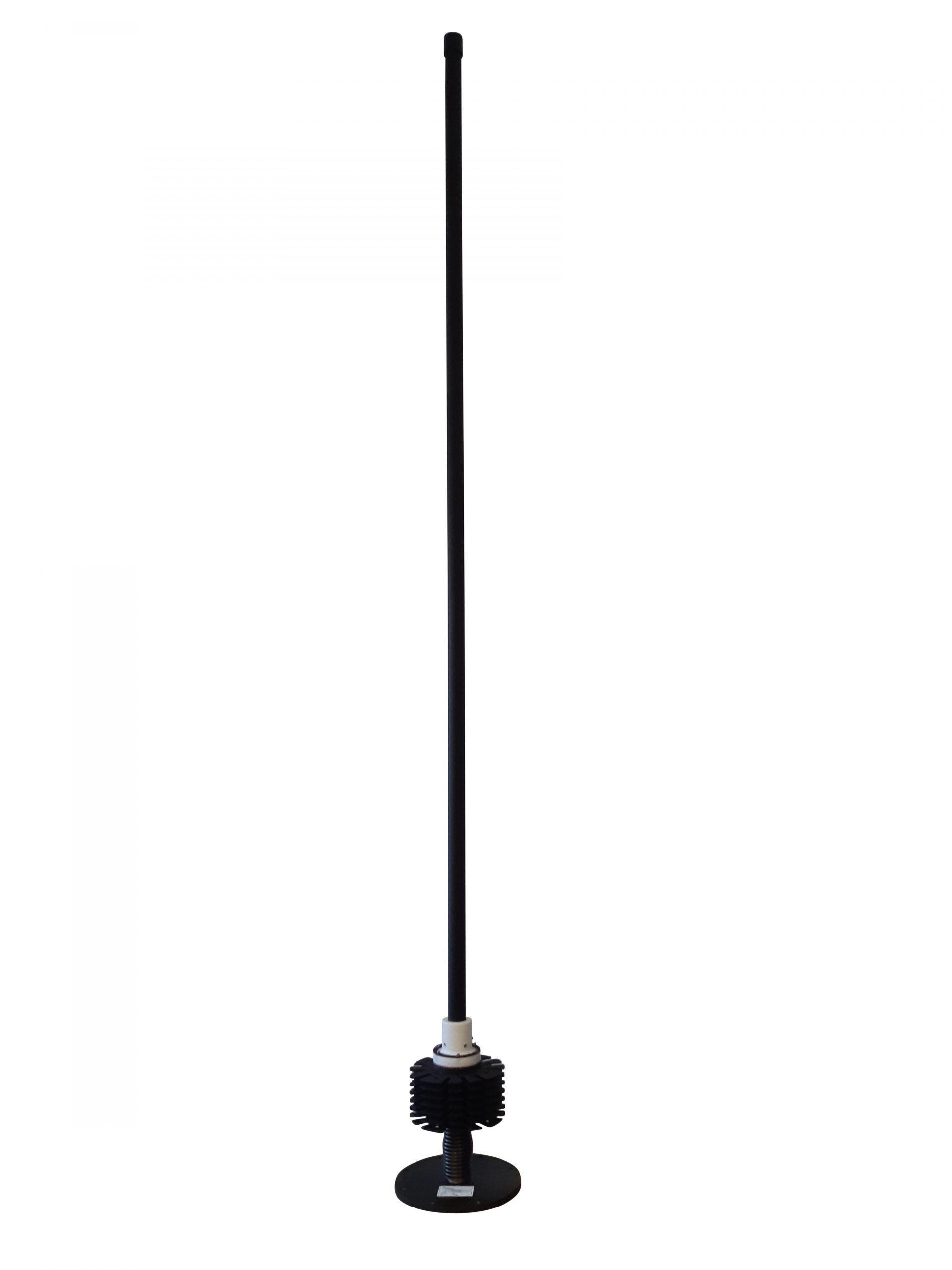

High Power Omnidirectional Vehicle Antenna

4-200 MHz High Power Omnidirectional Vehicle Antenna

(2 meters)

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:		4-200 MHz
3.0
160 Watt CW (Tested)
2 meters
4.3 kg
50 ohm
N-connector/Female
Black
High Power Omnidirectional Wideband Vehicle Antenna

400-8000 MHz High Power Omnidirectional Wideband Vehicle Antenna

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		400-8000 MHz
2.5
200 Watt CW (Tested)
20 cm
0.5 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
High Power Omnidirectional Wideband Vehicle Antenna

400-6000 MHz High Power Omnidirectional Wideband Vehicle Antenna

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		400-6000 MHz
2.5
200 Watt CW (Tested)
20 cm
0.5 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
High Power Omnidirectional Wideband Vehicle Antenna

200-6000 MHz High Power Omnidirectional Wideband Vehicle Antenna

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:
Vibration:		400-6000 MHz
2.5
200 Watt CW (Tested)
20 cm
0.5 kg

50 ohm
N-connector/Female
Black
MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
High Power Omnidirectional Vehicle Antenna

4-200 MHz High Power Omnidirectional Vehicle Antenna

(1.25 meters)

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:		4-220 MHz
3.0
160 Watt CW (Tested)
1.25 meters
4.1 kg
50 ohm
N-connector/Female
Black
High Power Omnidirectional Vehicle Antenna

4-200 MHz High Power Omnidirectional Vehicle Antenna

(1.5 meters)

Frequency:
Maximum VSWR:
Power Handling:
Height:
Mass:
Nominal input impedance:
Connector:
Color:		4-220 MHz
3.0
160 Watt CW (Tested)
1.5 meters
4.2 kg
50 ohm
N-connector/Female
Black
1150-1700 MHz Right Hand Circular Polarized High Power Axial Mode Helical Antenna

HP-AMHA-11501700

1150-1700 MHz High Power Right Hand Circular Polarized (RHCP) Axial Mode Helical Antenna

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Height:
Nominal input impedance:
Connector:
Color:
Polarization:
Radiation Pattern:
Antenna Gain:
1150-1700 MHz
2 (Below 1.5 in most frequency band)
200 Watt CW (%100 duty cycle) Tested
770 mm
50 ohm
N Female Connector
Dark Green (Other colours on request)
Right Hand Circular Polarization (RHCP)
Directional
9.4 dBi to 13.3 dBi depending on the frequency
1100-1350 MHz Right Hand Circular Polarized High Power Axial Model Helical Antenna

HP-AMHA-11001350

1100-1350 MHz Right Hand Circular Polarized High Power Axial Mode Helical Antenna

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Height:
Nominal input impedance:
Connector:
Color:
Polarization:
Radiation Pattern:
Antenna Gain:		1100-1350 MHz
1.5
200 Watt CW (%100 duty cycle) Tested
770 mm
50 ohm
N Female Connector
Dark Green (Other colours on request)
Right Hand Circular Polarization (RHCP)
Directional
11.9 dBi to 13.6 dBi depending on the frequency
400-6000 MHz High Power Wideband Log Periodic Antenna

HPLPDA-4006000

400-6000 MHz High Power Wideband Log Periodic Antenna

Specifications

Frequency:
Maximum VSWR:
Power Handling:
Dimensions:
Nominal input impedance:
Connector:
Polarization:
Radiation Pattern:
Antenna Gain:		400-6000 MHz
2
200 Watt CW (%100 duty cycle) Tested
530 mm (Length) X 370 mm (Width)
50 ohm
N Female Connector
Linear
Directional
Typical 7 dBi (See antenna gain graph in the datasheet
